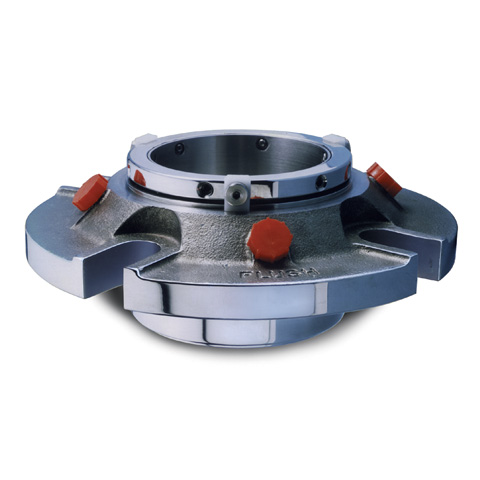

The CSM™ cartridge single seal for mixers is available in a wide range of seal face, elastomer and alloy combinations, to suit individual applications.

Features:

• Single cartridge seal
• Can accept radial movement up to 0.062″ (1.5mm)
• Can be used on mixers with long, overhanging shafts
• Suitable for top entry agitator service and vapour applications
• Exotic alloy wetted parts available for use with corrosive chemicals
• Sizes available from 1.000″ to 5.000″ (24mm – 125mm) in standard and ANSI Plus gland formats larger sizes up to 12.000″ (300mm) available on request
